Body Control Module Connector End Views

Table 1:	Body Control Module (BCM) C1
Table 2:	Body Control Module (BCM) C2
Table 3:	Body Control Module (BCM) C3
Table 4:	Front Side Door Lock, Left
Table 5:	Front Side Door Lock, Right

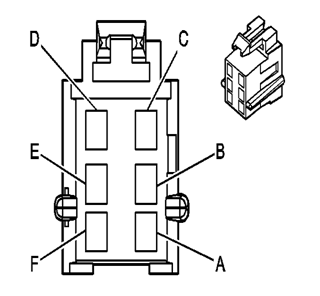

Body Control Module (BCM) C1
Connector Part Information		1208-9527 6 Way F Metri-Pack 280 Series (GRN)
Pin	Wire Color	Circuit No.	Function
A	TAN	694	Driver Door Unlock
B	GRY	295	Lock All Output
C	RED/BLK	780	Lock All Input
D	ORN/BLK	781	Unlock All Input
E	GRY/BLK	1663	Passenger Door Unlock
F	--	--	Not Used

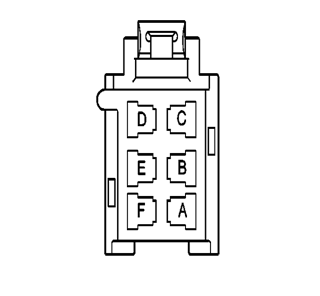

Body Control Module (BCM) C2
Connector Part Information		1206-4752 6 Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	650	Ground
B	ORN	40	Battery Positive Voltage
C	DK BLU	75	Retained Accessory Power (RAP)
D	BRN	4	Accessory Positive Voltage
E	DK BLU/WHT	149	Courtesy Lamps Feed
F	RED	102	Battery Positive Voltage

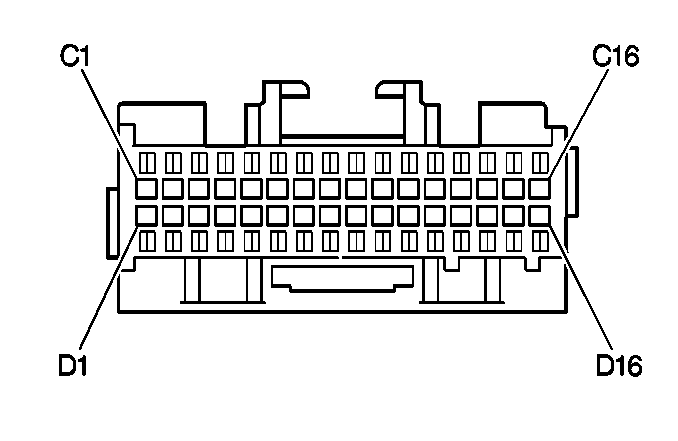

Body Control Module (BCM) C3
Connector Part Information		1211-0207 32 Way F Metri-Pack 100 Series (BLU)
Pin	Wire Color	Circuit No.	Function
C1	BLK	650	Ground
C2	PPL/WHT	1074	Ignition Key Resistor Return
C3	--	--	Not Used
C4	PPL/WHT	237	Fasten Seat Belt Indicator Control
C5	DK GRN	220	Starter Enable (V6 VIN K)
C6	DK GRN/WHT	817	Vehicle Speed Input (Gulf States)
C7	GRY	157	Interior Lamps Command Input
C8	BLK/WHT	624	Park Lamps Relay Control (Domestic)
C8	YEL	1977	Rear Fog Lamp Relay Control (Europe)
C9	BLK	28	Horn Relay Control
C10	--	--	Not Used
C11	YEL/BLK	625	Starter Relay Control (Domestic)
C12	GRY	728	Security Indicator Lamp Control
C13	BLK/WHT	238	Seat Belt Switch Signal
C14	LT GRN	80	Ignition Key Signal
C15	--	--	Not Used
C16	DK GRN	1376	Security LED Control
D1	WHT	156	Courtesy Lamps Return
D2	LT BLU	263	Shock Sensor Tamper Input
D3	BLK/WHT	1576	Rear Compartment Lid Release Signal
D4	BRN	253	Rear Compartment Lid Release Relay Control
D5	PNK	39	Ignition Positive Voltage
D6	YEL	43	Program Input
D7	WHT/BLK	1037	Ignition Key Resistor Feed
D8	DK BLU	229	Fuel Enable
D9	LT BLU	187	Rear Fog Lamp Request (Europe)
D10	--	--	Not Used
D11	GRY/BLK	745	Driver Door Open Input
D12	BLK/WHT	746	Passenger Door Input
D13	ORN/BLK	737	Rear Compartment Lid Ajar Input
D14	LT GRN	1828	Shock Sensor Shock Input (Domestic)
D14	BLK	650	Ground (Europe)
D15	BRN	9	Park Lamps Feed
D16	--	--	Not Used

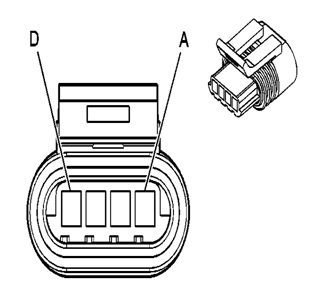

Front Side Door Lock, Left
Connector Part Information		1216-2189 4 Way F Metri-Pack 150.2 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	GRY/BLK	745	Driver Door Open Signal
B-C	--	--	Not Used
D	BLK	750	Ground

Front Side Door Lock, Right
Connector Part Information		1216-2189 4 Way F Metri-Pack 150.2 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	746	Passenger Door Open Signal
B-C	--	--	Not Used
D	BLK	750	Ground
