Body Control Module Connector End Views

Table 1:	Body Control Module (BCM) C1
Table 2:	Body Control Module (BCM) C2
Table 3:	Body Control Module (BCM) C3
Table 4:	Front Side Door Lock, Left
Table 5:	Front Side Door Lock, Right

Body Control Module (BCM) C1
Connector Part Information		1208-9527 6-Way F Metri-Pack 280 Series (GRN)
Pin	Wire Color	Circuit No.	Function
A	TAN	694	Driver Door Lock Actuator Unlock Control
B	GRY	295	Door Lock Actuator Lock Control
C	RED/BLK	780	Driver Door Lock Switch Lock Signal
D	ORN/BLK	781	Driver Door Lock Switch Unlock Signal
E	GRY/BLK	1663	Passenger Door Lock Actuator Unlock Control
F	--	--	Not Used

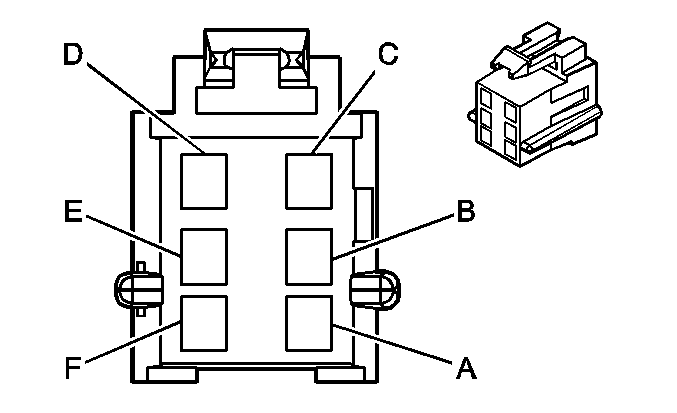

Body Control Module (BCM) C2
Connector Part Information		1206-4752 6-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	650	Ground
B	ORN	40	Battery Positive Voltage
C	DK BLU	75	RAP Relay Switch Supply Voltage
D	BRN	4	Accessory Voltage
E	DK BLU/WHT	149	Courtesy Lamp Supply Voltage
F	RED	102	Battery Positive Voltage

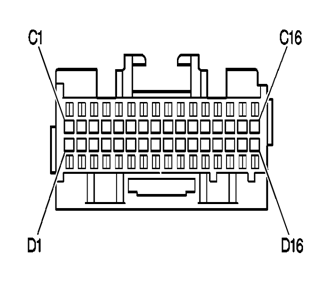

Body Control Module (BCM) C3
Connector Part Information		1211-0207 32-Way F Metri-Pack 100 Series (BLU)
Pin	Wire Color	Circuit No.	Function
C1	BLK	650	Ground
C2	PPL/WHT	1074	Ignition Key Resistor Low Reference
C3	--	--	Not Used
C4	PPL/WHT	237	Instrument Panel Lamp Control
C5	DK GRN	220	Starter Enable Control (V6 VIN K)
C6	DK GRN/WHT	817	Vehicle Speed Signal (Gulf States)
C7	GRY	157	Interior Lamp Control
C8	BLK/WHT	624	Park Lamps Relay Control (Domestic)
C8	YEL	1977	Rear Fog Lamp Relay Control (Europe)
C9	BLK	28	Horn Relay Control
C10	--	--	Not Used
C11	YEL/BLK	625	Starter Enable Relay Control (Domestic)
C12	GRY	728	Security Indicator Control
C13	BLK/WHT	238	Seat Belt Switch Signal - Left
C14	LT GRN	80	Key In Ignition Switch Signal
C15	--	--	Not Used
C16	DK GRN	1376	Alarm Armed Signal
D1	WHT	156	Courtesy Lamp Control
D2	LT BLU	263	Tamper Switch Signal
D3	BLK/WHT	1576	Rear Compartment Lid Release Signal
D4	BRN	253	Rear Compartment Lid Release Relay Control
D5	PNK	39	Ignition 1 Voltage
D6	YEL	43	Accessory Voltage
D7	WHT/BLK	1037	BCM Class 2 Serial Data
D8	DK BLU	229	Fuel Enable Control
D9	LT BLU	187	Rear Fog Lamp Switch Signal (Europe)
D10	--	--	Not Used
D11	GRY/BLK	745	Left Front Door Ajar Switch Signal
D12	BLK/WHT	746	Right Front Door Ajar Switch Signal
D13	ORN/BLK	737	Rear Compartment Lid Ajar Control
D14	LT GRN	1828	Shock Sensor Signal (Domestic)
D14	BLK	650	Ground (Europe)
D15	BRN	9	Park Lamp Supply Voltage
D16	--	--	Not Used

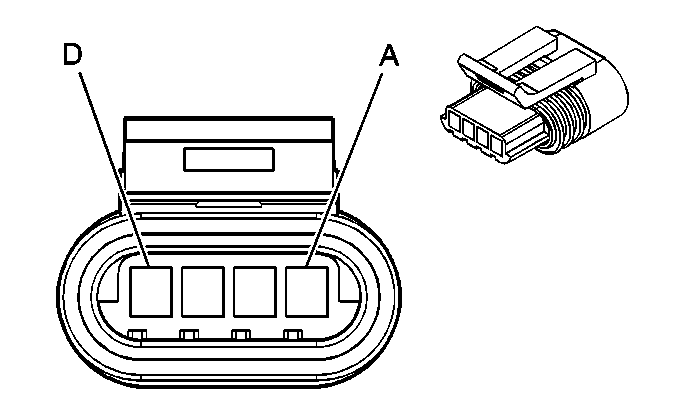

Front Side Door Lock, Left
Connector Part Information		1216-2189 4-Way F Metri-Pack 150.2 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	GRY/BLK	745	Left Front Door Ajar Switch Signal
B-C	--	--	Not Used
D	BLK	750	Ground

Front Side Door Lock, Right
Connector Part Information		1216-2189 4-Way F Metri-Pack 150.2 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	746	Right Front Door Ajar Switch Signal
B-C	--	--	Not Used
D	BLK	750	Ground
