Body Control Module Connector End Views

Table 1:	Body Control Module (BCM) C1
Table 2:	Body Control Module (BCM) C2
Table 3:	Body Control Module (BCM) C3

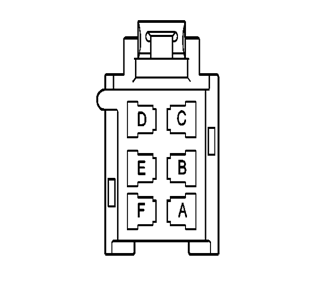

Body Control Module (BCM) C1
Connector Part Information		1208-9527 6 Way F Metri-Pack 280 Series (GRN)
Pin	Wire Color	Circuit No.	Function
A	TAN	694	Driver door unlock
B	GRY	295	Lock all output
C	RED/BLK	780	Lock all input
D	ORN/BLK	781	Unlock all input
E	GRY/BLK	1663	Passenger door unlock
F	--	--	Not used

Body Control Module (BCM) C2
Connector Part Information		1206-4752 6 Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	650	Ground
B	ORN	40	Battery positive voltage
C	DK BLU	75	Retained accessory power (RAP)
D	BRN	4	Accessory positive voltage
E	DK BLU/WHT	149	Courtesy lamps feed
F	RED	102	Battery positive voltage

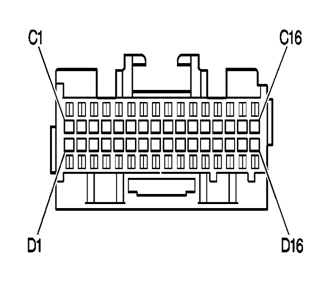

Body Control Module (BCM) C3
Connector Part Information		1211-0207 32 Way F Metri-Pack 100 Series (BLU)
Pin	Wire Color	Circuit No.	Function
C1	BLK	650	Ground
C2	PPL/WHT	1074	Ignition key resistor return
C3	--	--	Not used
C4	PPL/WHT	237	Fasten seat belt indicator control
C5	DK GRN	220	Starter enable (V6 VIN K)
C6	DK GRN/WHT	817	Vehicle speed input (Gulf States)
C7	GRY	157	Interior lamps command input
C8	BLK/WHT	624	Park lamps relay control (Domestic)
C8	YEL	1977	Rear fog lamp relay control (Europe)
C9	BLK	BLK	Horn relay control
C10	--	--	Not used
C11	YEL/BLK	625	Starter relay control
C12	GRY	728	Security indicator lamp control
C13	BLK/WHT	238	Seat belt switch signal
C14	LT GRN	80	Ignition key signal
C15	YEL/BLK	68	Low coolant indicator latching
C16	DK GRN	1376	Security LED Control
D1	WHT	156	Courtesy lamps return
D2	LT BLU	263	Shock sensor tamper input
D3	BLK/WHT	1576	Rear compartment lid release signal
D4	BRN	253	Rear compartment lid release relay control
D5	PNK	39	Ignition positive voltage
D6	YEL	49	Program input
D7	WHT/BLK	1037	Ignition key resistor feed
D8	DK BLU	229	Fuel enable
D9	LT BLU	187	Rear fog lamp request (Europe)
D10	--	--	Not used
D11	GRY/BLK	745	Driver door open input
D12	BLK/WHT	746	Passenger door input
D13	ORN/BLK	737	Rear compartment lid ajar input
D14	LT GRN	1828	Shock sensor shock input (Domestic)
D14	BLK	650	Ground (Europe)
D15	BRN	9	Park lamps feed
D16	--	--	Not used
